Moved to New Post - Do Not Reply

[Kormorant]

Done @TheCatIsCrazy. delete ur other post
it’s a wiki so u have unlimited edit time

[TheCatIsCrazy]

hello im here

lol @Kormorant I was just about to add game-recreation

[Arcane_Ember]

(post deleted by author)

[Waffle_Lover_4_Life]

How do you make it where the terrain is like square, like in the post?

[TheCatIsCrazy]

oh yeah lol I thought that was already added

@Waffle_Lover_4_Life use a bigger brush and use terrain layering to reach the desired effect!

oh wait @Arcane_Ember it is already added…

[Arcane_Ember]

May a create a map Cat?

Also can I change the title to a little bit more simple

[TheCatIsCrazy]

yes you may.

uhhh what are you planning to change it to?

I like it but don’t forget the difficulty @Arcane_Ember

@Kormorant, can you change the title to:
[]Making Blade Ball in GKC (WIP)(5/10)

@Arcane_Ember are you editing?

[Arcane_Ember]

Just like [] Making Blade Ball in GKC (W.I.P) (Memory Heavy
I CANT CHANGE TITLE

[suarez99]

Why was this flagged? I don’t understand
huh

[TheCatIsCrazy]

Who flagged this? Kor had permission from the OP (me) to make a dupe of this so I could have a wiki.

@bakedpotato

Kormant’s banned

oop I didn’t notice that…

[serial_destination_V]

maybe they didn’t know or a spam flaggers just flagged it

[bakedpotato]

It’s likely that a spam flagger is going around. One of my posts got taken down, too.

The most we can do right now is wait until you can edit it again.
Kormant’s banned now, though, so you might have to get another reg to repost it.

---

@TheCatIsCrazy

Here’s the copy-paste from the raw:

stuffs

Hello, forumers!

Welcome to my 1st guide (2nd if you include the accidental duplicate)
In this guide we will learn how to make blade ball in Gimkit, in a very, very memory-inefficient way.

Some things are impossible to make (or I just didn't want to figure out how to make it), and will not be covered here.

I apologize in advance for my messy map, as this is my Blade Ball map with props and everything.

Now, let’s jump right into the guide!

---

Have you ever wondered how to make Blade Ball In Gimkit?

Yes

Then this is the guide for you!

No

Then why are you here? (other than for advice because i’m so handsome and smart)

Jokes aside, I hope you enjoy my ^[1] guide!

---

So, let’s start with what Blade Ball IS, for those of you who haven’t played it before, or just need a refresher.

Description of Blade Ball (AI)

Blade Ball is a popular, fast-paced action game on Roblox where players use swords to deflect a homing ball in an arena, with the goal of being the last one standing. The gameplay is a high-speed dodgeball match with a twist: split-second reflexes and strategic use of unique abilities are key to survival as the ball’s speed increases with every successful deflection.

---

Devices Needed: Overall

There WILL be devices needed sections on each part, this is just the overall

• Ball Capture Zone x13 MEMORY:2,600 (yeah its a really big system)

• Zone x12 MEMORY: 3,600

• Trigger x27 MEMORY: 1,080

• Ball x1 MEMORY:1,000

• Spawn Pad/Teleporter x8 MEMORY: 80/400

• Relay x1 MEMORY:20

• Wire Repeater x10 MEMORY: 50

• Starting Inventory x1 MEMORY:10

• Text x6 MEMORY:360 (OPTIONAL: MAKES IT EASIER TO SEE WHAT YOU ARE EDITING)

• Property x4 MEMORY: 40

• Lifecycle x1 MEMORY:50

• Waypoint x1 MEMORY:175 (OPTIONAL: ACCOUNTS FOR NOT BEING ABLE TO CHANGE CAMERA ANGLE

• Barrier x1 MEMORY:20

• Damager x1 MEMORY:30

• BLOCKS x26 MEMORY: 13,000 (in almost every trigger. you can see how this is memory-inefficient.)
  Total memory: A lot, I don’t like counting… Oh fine… → ^[2]
  That sum didn’t include wires because I’m not going around my map counting wires.(Sorry to those memory-watchers)

---

Parts

Mechanics

This section talks about mechanics like tracking the ball, tracking the player, and other guides that can be used.

Impossible/Haven't figured out yet

• Making the ball home(IMPOSSIBLE)
• Making the ball move at the start(probably possible, not yet figured out)
• Switching to spectator when knocked out ^[3]

---

Tracking The Ball

Devices Required

12x Ball Capture Zone
12x Trigger
12x Blocks
2x Text(for formatting; optional)
2x Property

Place a Ball in the center of a 24x24 terrain patch

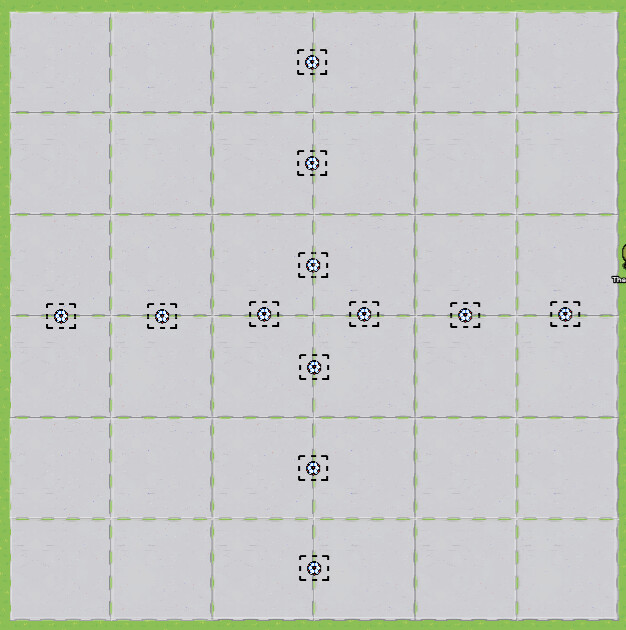

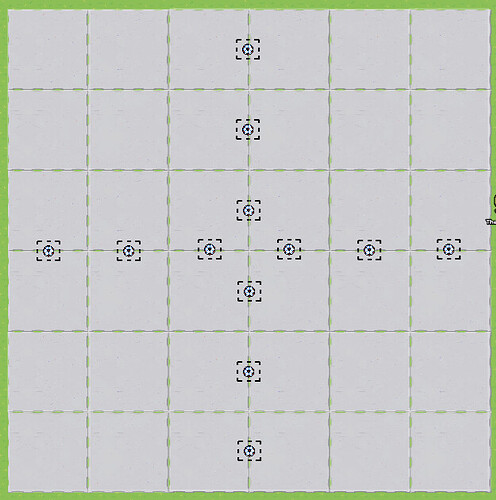

Place 12 Ball Capture Zones like this: ^[4]

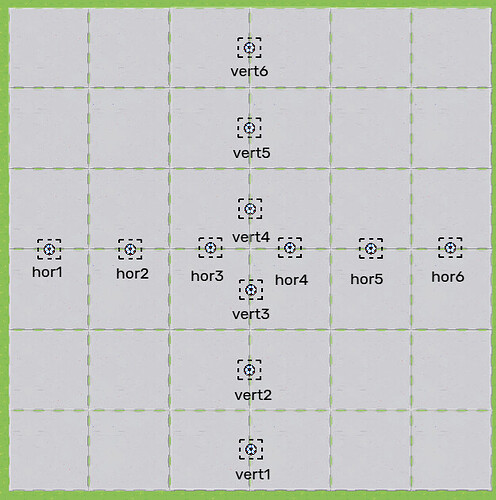

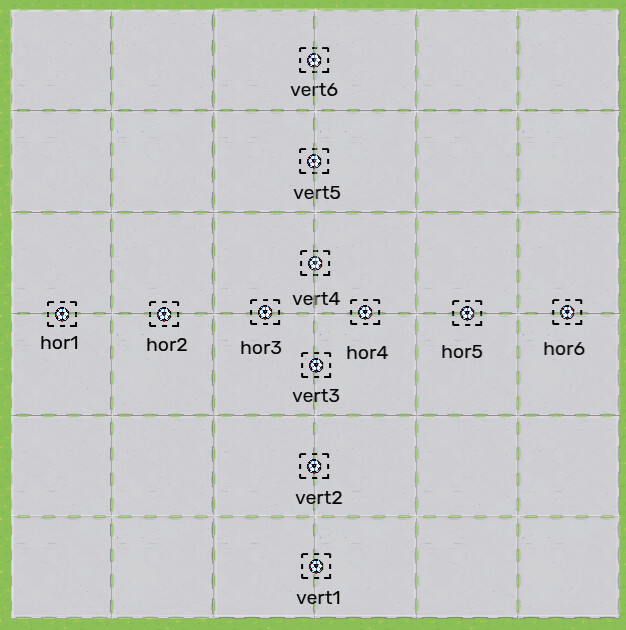

Now make those transmit on these channels(the channel underneath):

What this does is assigns a spot to each area(eventually)

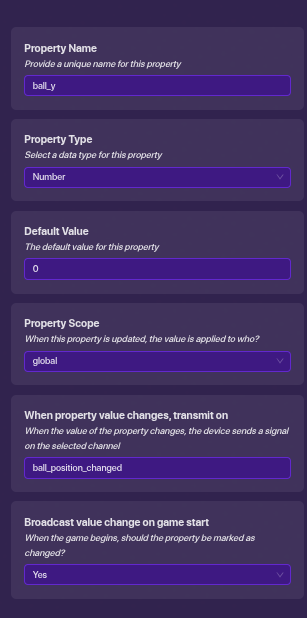

Place 2 Properties.
Set them to

And

Respectively.

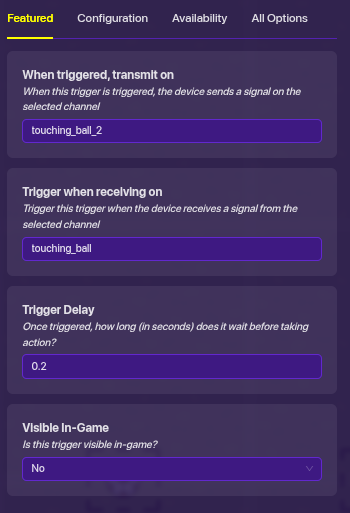

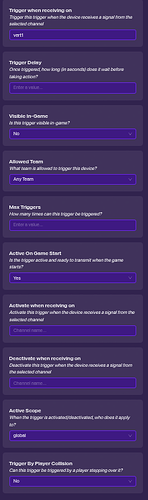

Now, place 2 Triggers.

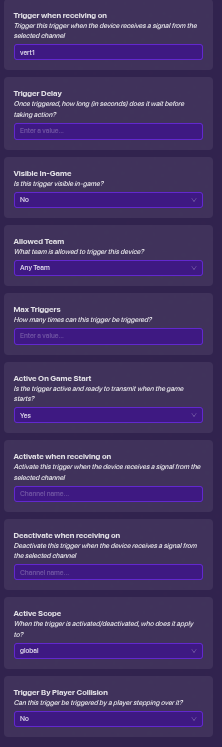

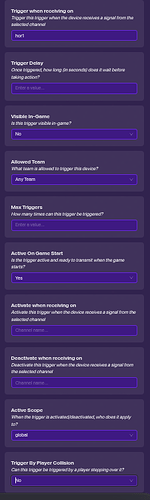

Set one to this:

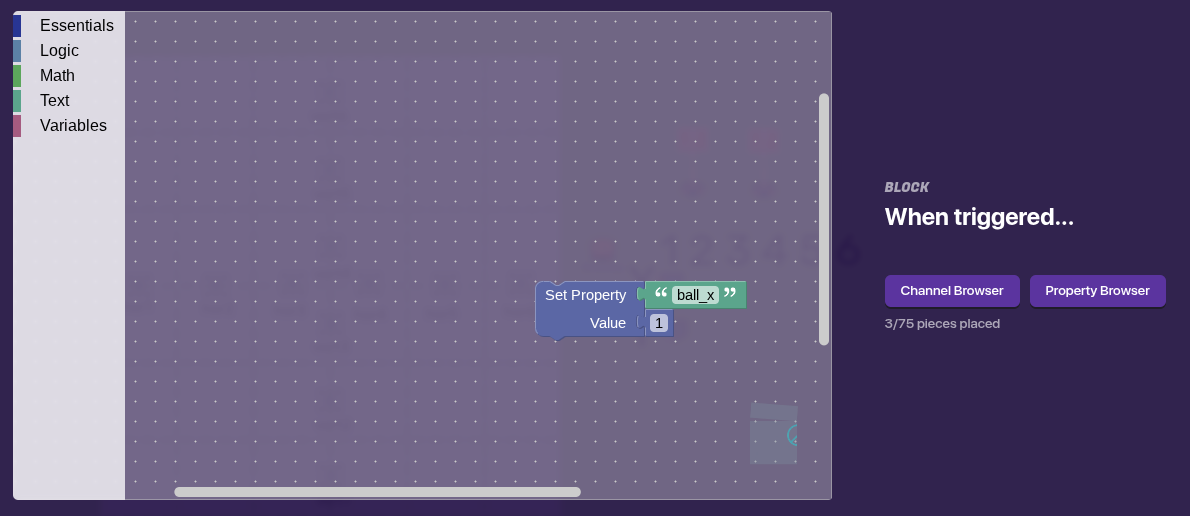

With this Block Code:

Set Property: ball_x
Value: 1(you will change this through 6 eventually)

And the other to this:

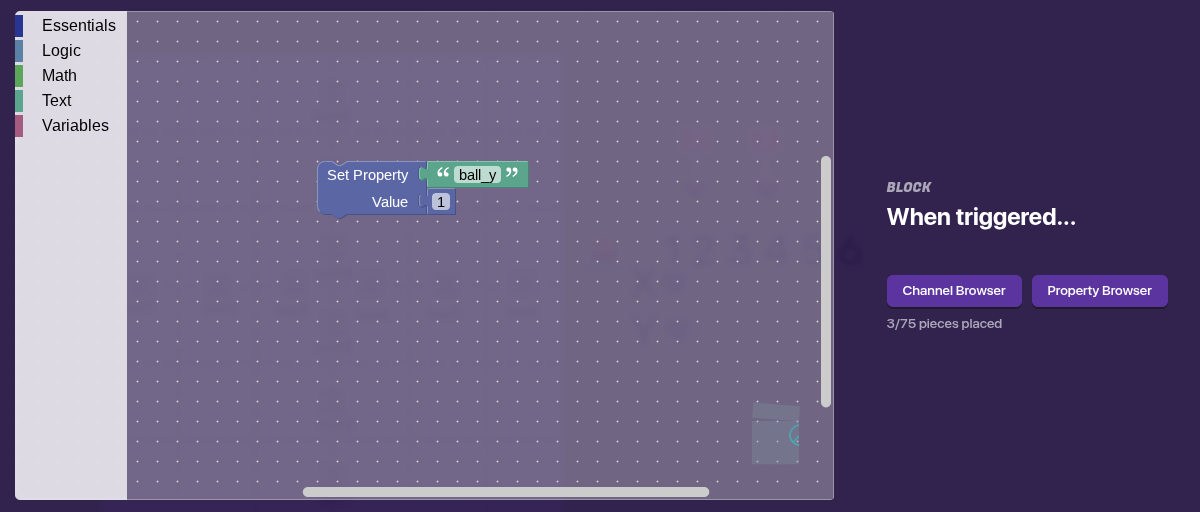

With this Block Code:

Set Property: ball_y
Value: 1(you will change this through 6 eventually)

Now, copy those over to the right 5 times.
Then, change the settings (trigger when receiving on and the block code numbers) to 2 then the next is 3, etc., etc.
Now, add a ring of walls around your 24x24 cube and you should be done!

Tracking The Player

Devices Needed

12x Zone
12x Trigger
12x Blocks
2x Text(for formatting; optional)
2x Property

You know what you just did with the Ball Tracking?
Well, now you will do that exact same thing, but with normal zones!

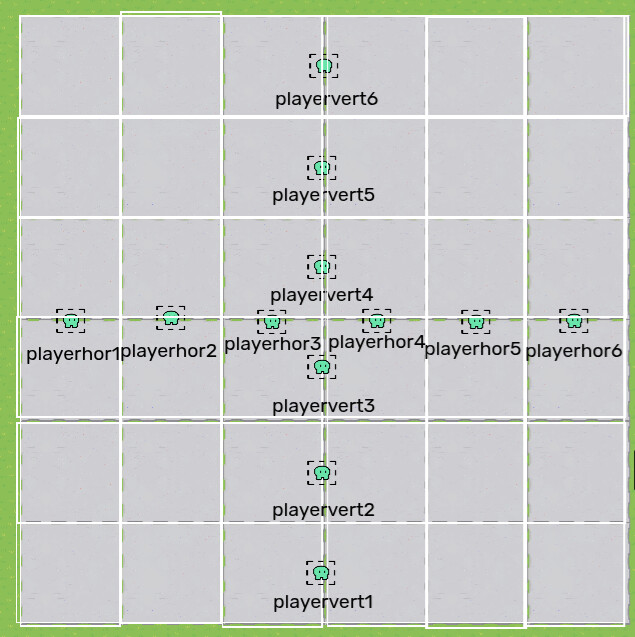

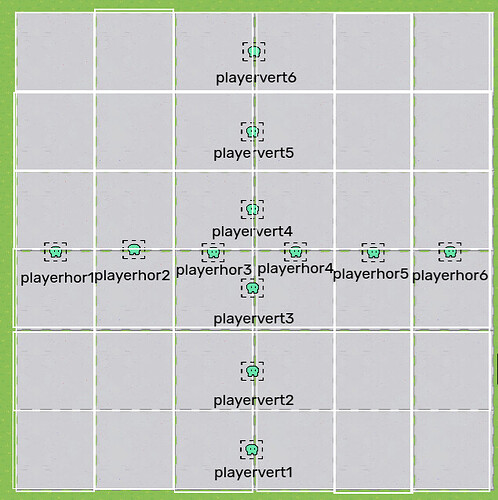

Lay out your zones like this:^[5]

Then make them transmit on these channels (the channel below)

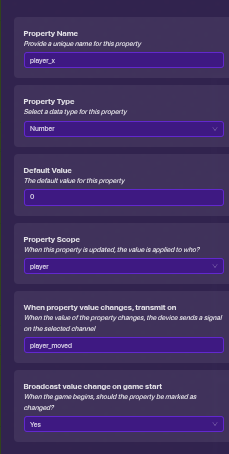

Add two properties^[6]
Property 1:

Property 2:

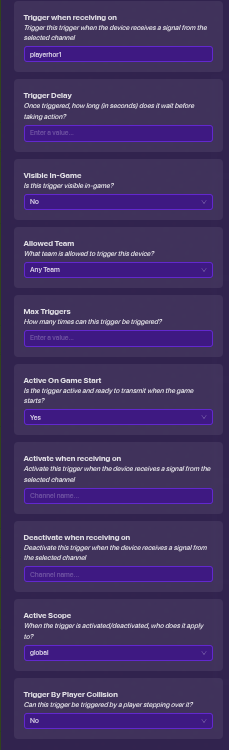

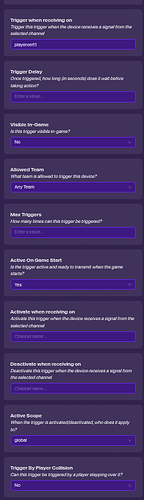

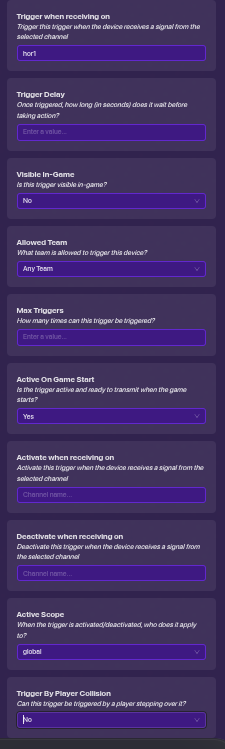

Now, add two triggers.^[7]

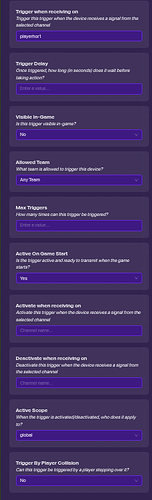

The first one:

Block Code:

The Second one:

Block Code:

Now, once again, copy those over to the right 5 times and change the numbers!

Comparing The Positions

Devices Needed

1x Trigger
1x Damager
1x Block Code

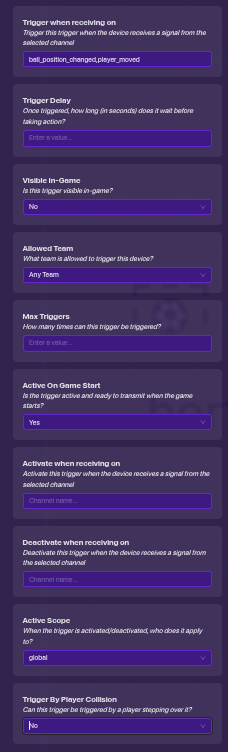

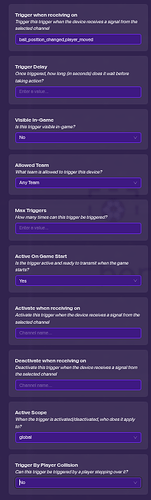

Make a trigger with these settings:

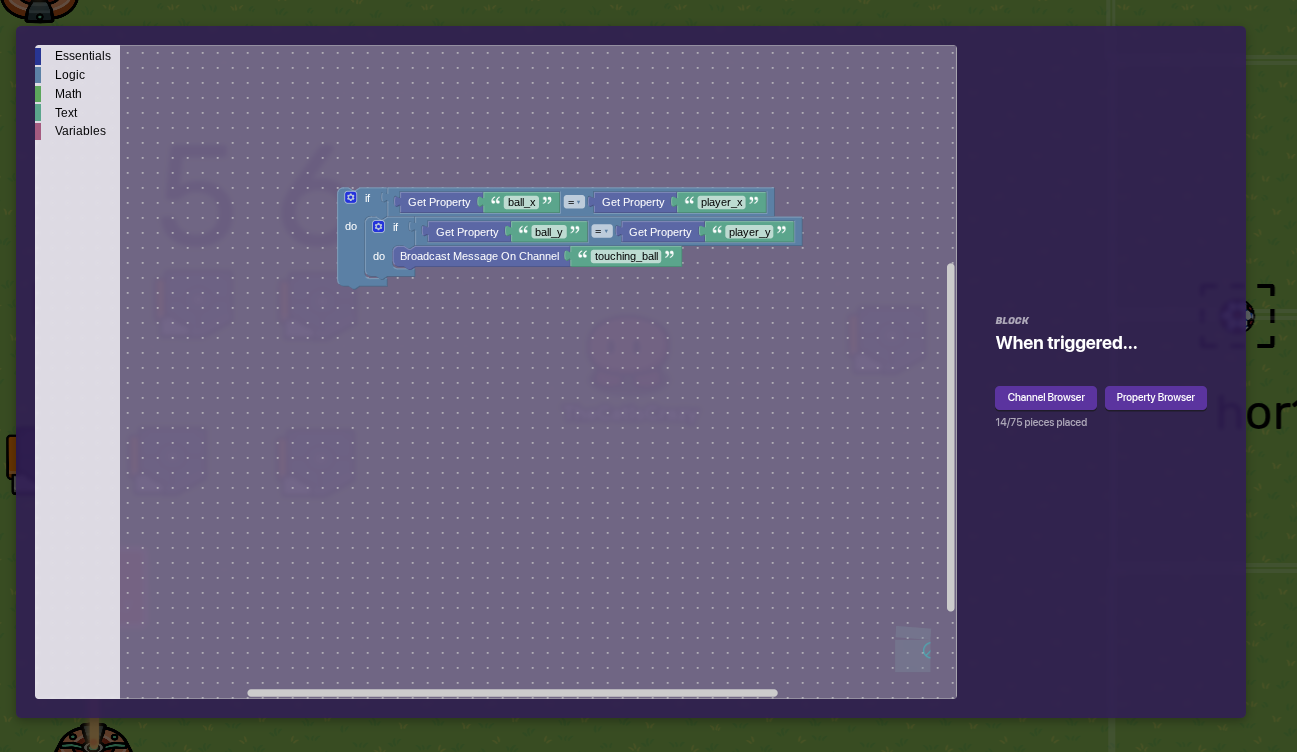

And this block code:

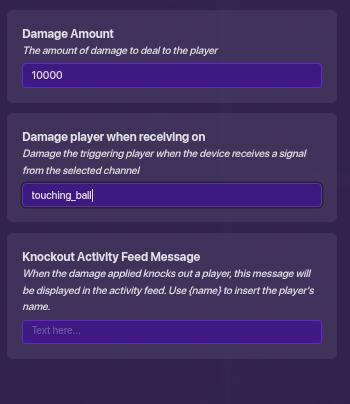

Now, add a damager with these settings:

Making The Ball Respawn

Devices Needed

1x Ball Capture Zone
1x Trigger

Make a Ball Capture Zone stretched across the entire 24x24 zone (also make it cover your walls :P.)

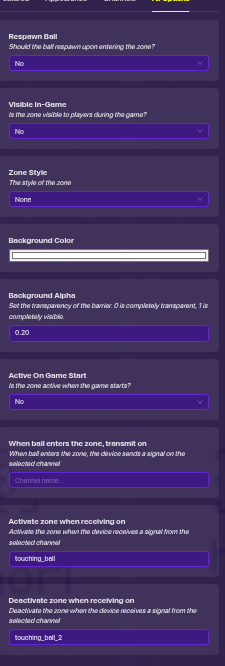

Give it these settings:

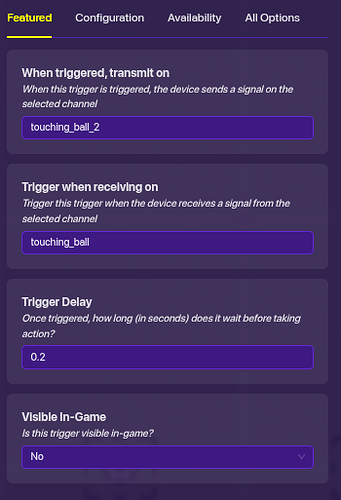

Add a Trigger with these settings:

YOU HAVE NOW FINISHED THE MECHANICS!!!!

Lobby

WIP

Maps

WIP

How difficult is this guide /10

• 1
• 2
• 3
• 4
• 5
• 6
• 7
• 8
• 9
• 10

Is this guide good?

• Amazing!
• Great
• Okay
• Bad
• Worst

In Conclusion, never say that something is impossible.

I spent 3 hours on this and it’s not even done

Credits

Jhan for help figuring out this system
Can you make a ball that deals damage - #17 by Pineappleman
@Pineappleman for the main system that I figured out and added!

Can you copy that correctly, or no?
I could re-post the wiki for ya if you can’t

---

it’s up! lemme change this topic’s title and category rq so nobody comes in like “OOOHH IT’S A DUPE GUYS”

---

1. very well-formatted, if I do say so myself ↩︎

2. 22,435 to be exact (yes i used a calculator I’m not doing this without it) ↩︎

3. Don’t jump at me, i know this is normally possible, but the knockout system is not a normal knockout ↩︎

4. MAKE SURE THEY ALL HAVE BALL RESPAWN OFF ↩︎

5. Make sure it’s at the same place as the Ball Capture Zones, I don’t have mine there for clarity. ↩︎

6. copy the ones from the ball, only a small bit changes ↩︎

7. Just copy the first 2 from the ball ↩︎

[TheCatIsCrazy]

…
i marked a solution on the main guide so that’s closed now and I cant copy paste from the raw so I don’t think its possible to make a repost…

I can copy some of it but not the dropdowns.

@bakedpotato

Can you copy that correctly, or no?

@bakedpotato

I could re-post the wiki for ya if you can’t

that would be nice if you could
